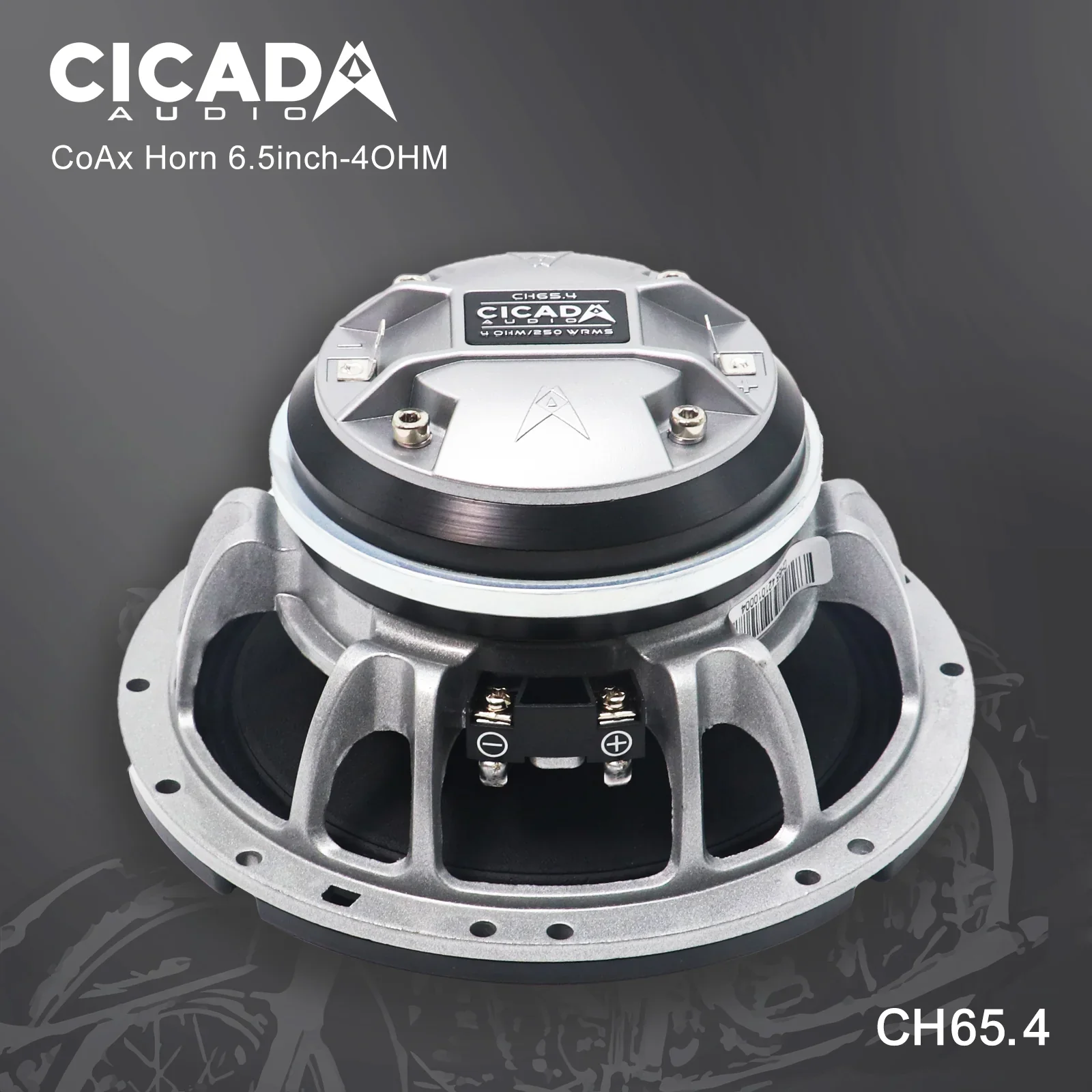

Cicada Audio CH65.4v2 6.5″ COAX HORN – 4 OHM
Cicada Audio CH65.4v2 6.5″ COAX HORN – 4 OHM
Product details
- 500WRMS/1000 MAX Power Handling- PAIR
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty/ Die-cast Aluminum Basket
- 2.0” 4 Ohm – High Temp Voice Coil (Black Coat™) Voice Coil MidBass
- Shortening Ring for the Ultimate in speaker control
- 1.4” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 75Hz -20Khz+/-5dB
- High Sensitivity:4dB / 99dB 1W/1M Average (1W/1M – 2.83V)
- 12dB Crossover with custom tooled/ Vented crossover case
- Can be Bi-Amped (Horn Tweeters can be run on their own dedicated channels)
- Mounting Depth: 3.0” / 76.2mm
- Mounting Diameter: 5.7” / 145.5mm
FITMENT APPLICATIONS:
Fits all ’14 & up batwing fairings (Street Glide, Electra Glide, Ultra). Fits ’15 & up Road Glide with SLIGHT modification to fairing speaker pods (some guys use a heat gun to make a little more room for the magnet). On Road Glides we found that we simple take a drum sander attachment on a cordless drill and sand the opening a little bigger (2 or 3 swipes is what we found) On Street Glides…a MUCH more in depth project. Fits ’13 and down batwing fairings if you grind off the small plastic rib on the inside of the outer fairing.
