db drive WDX PRO5000.1D Amplifier. Mono Block Perfect for Custom Bass Consoles
db drive WDX PRO5000.1D Amplifier. Mono Block 1 ohm
Perfect for Custom Bass Consoles or Sundown or WDX G7 Subwoofers.
- ATC - Audiophile RCA Connectors
- ACT - Adaptive Crossover Technology
- High efficiency Class Full Range Class D Technology
- 4 Gauge Direct Connect Speaker Terminals

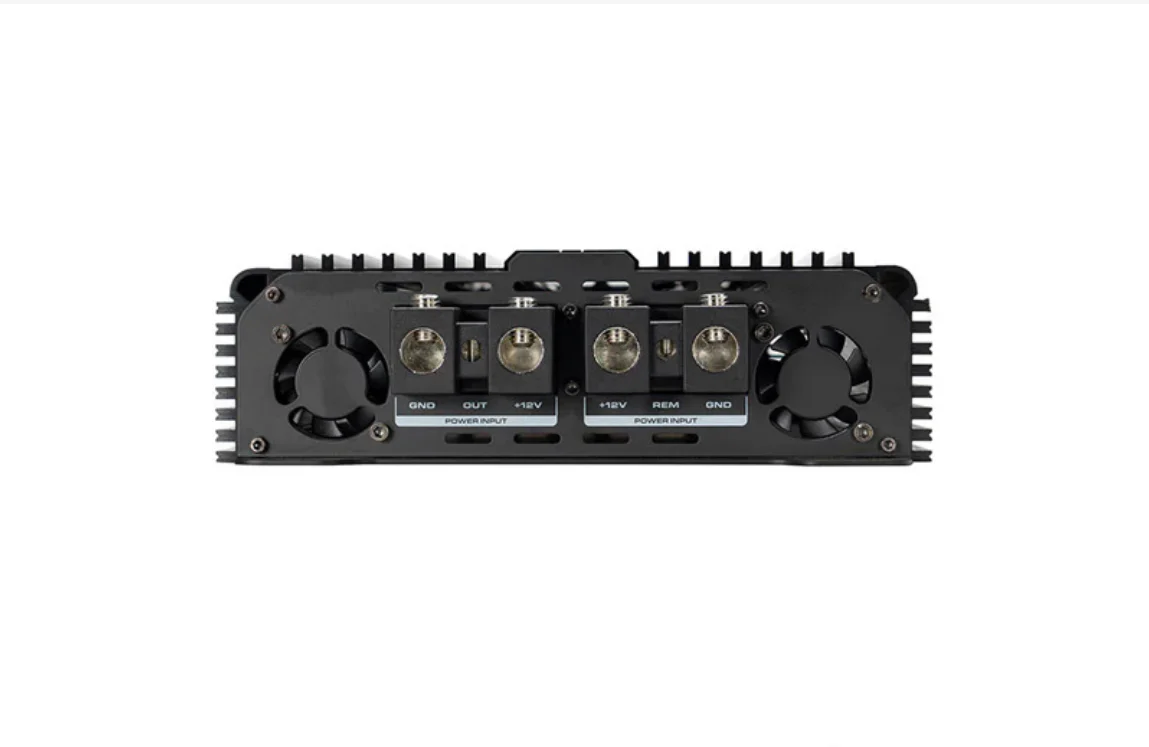

- Dual 0 Gauge Power Wire Inputs
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status Indicator
- Bass Remote with voltage , temperature and signal status indicator
- CHM - Collective Heat Management
Specifications
- 1 x 5000 Watts @ 1 ohm
- 1 x 2500 Watts @ 2 ohms
- 1 x 1250 Watts @ 4 ohms
- Working Voltage: 12-15 Volts
- Frequency Response: 15 Hz - 20k Hz
- Signal to Noise Ratio: 95dB
- Damping Factor: ≥200
- Low Level Input: 6V - 0.2mV
- Variable Bass Boost Frequency: 35 Hz - 70 Hz
- Bass Boost EQ Gain: 0dB - 12dB
- High Pass Filter Variable: 15 Hz - 8k Hz
- Low Pass Filter Variable: 40 Hz - 20 Hz
- Minimum working Impedance: 1 Ohm
The DB Drive WDX amplifiers includes built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for all mono amplifiers. For added low frequency performance the amplifiers are equipped with a selectable6dB-12dB bass boost @ 45Hz
- 1Ω Mono Capability
- Blue LED POWER-ON Indicator
- Variable Low Level RCA Input
- Variable 12DB Per Octave Low-Pass X-Over
- Direct- Connect Connection Terminals
- Buffered Pre-amp input
- Selectable 6dB-12dB Boost @ 45Hz
- DRIVESINK Heat Management System
- Unregulated DB-DC PWM Power Supply
- Speaker Short Circuit Protection
- Bass Remote Included
Length (A) 15.24″ / (387mm) Width (B) 7.08″ / (180mm) Height (C) 2.25″ / (57.15mm) GENERAL SPECIFICATIONS Rated Power @ 14.4 Volts Dynamic Power Handling 1 x 3000 Watts @ 1Ω 1 x 1500 Watts @ 2Ω 1 x 750 Watts @ 4Ω
PARAMETERS Frequency Response 10Hz ~ 250Hz S/N Ratio < 95 dB Variable Phase Shift Control 0 ~ 180 Variable Subsonic Filter 10Hz ~ 50Hz Variable Low Pass Filter 50Hz ~ 220Hz Damping Factor 100m<
$197.99
Original: $659.95
-70%db drive WDX PRO5000.1D Amplifier. Mono Block Perfect for Custom Bass Consoles—
$659.95
$197.99
Description
db drive WDX PRO5000.1D Amplifier. Mono Block 1 ohm
Perfect for Custom Bass Consoles or Sundown or WDX G7 Subwoofers.
- ATC - Audiophile RCA Connectors
- ACT - Adaptive Crossover Technology
- High efficiency Class Full Range Class D Technology
- 4 Gauge Direct Connect Speaker Terminals
- Dual 0 Gauge Power Wire Inputs
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status Indicator
- Bass Remote with voltage , temperature and signal status indicator
- CHM - Collective Heat Management
Specifications
- 1 x 5000 Watts @ 1 ohm
- 1 x 2500 Watts @ 2 ohms
- 1 x 1250 Watts @ 4 ohms
- Working Voltage: 12-15 Volts
- Frequency Response: 15 Hz - 20k Hz
- Signal to Noise Ratio: 95dB
- Damping Factor: ≥200
- Low Level Input: 6V - 0.2mV
- Variable Bass Boost Frequency: 35 Hz - 70 Hz
- Bass Boost EQ Gain: 0dB - 12dB
- High Pass Filter Variable: 15 Hz - 8k Hz
- Low Pass Filter Variable: 40 Hz - 20 Hz
- Minimum working Impedance: 1 Ohm
The DB Drive WDX amplifiers includes built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for all mono amplifiers. For added low frequency performance the amplifiers are equipped with a selectable6dB-12dB bass boost @ 45Hz
- 1Ω Mono Capability
- Blue LED POWER-ON Indicator
- Variable Low Level RCA Input
- Variable 12DB Per Octave Low-Pass X-Over
- Direct- Connect Connection Terminals
- Buffered Pre-amp input
- Selectable 6dB-12dB Boost @ 45Hz
- DRIVESINK Heat Management System
- Unregulated DB-DC PWM Power Supply
- Speaker Short Circuit Protection
- Bass Remote Included
Length (A) 15.24″ / (387mm) Width (B) 7.08″ / (180mm) Height (C) 2.25″ / (57.15mm) GENERAL SPECIFICATIONS Rated Power @ 14.4 Volts Dynamic Power Handling 1 x 3000 Watts @ 1Ω 1 x 1500 Watts @ 2Ω 1 x 750 Watts @ 4Ω
PARAMETERS Frequency Response 10Hz ~ 250Hz S/N Ratio < 95 dB Variable Phase Shift Control 0 ~ 180 Variable Subsonic Filter 10Hz ~ 50Hz Variable Low Pass Filter 50Hz ~ 220Hz Damping Factor 100m<
